SJ420YS Set Up Box making machine
SJ 420YS Box making machine is mainly applied to producing demanding set up boxes, like high-end boxes for iPhone, iPad, jewelry, cosmetics, etc. This machine can also be used to process any type of rigid boxes, and can be customized according to customer’s requirements for boxes needed. The modularized product design and production can not only maintain high universality, but also provide diversified configuration, bringing great convenience and a variety of choices to customers.
Features
- YAMAHA mechanical arm can automatically fetch the rough box to the specific position accurately and rapidly.
- The automatic visual positioning system makes the positioning error less than or equal to 0.15 mm.
Parameters
| Model | SJ 420Y | SJ 420YS |
| Sheet size | 200-830mm | 200-830mm |
| Sheet width | 80-300mm | 80-300mm |
| Box Size (W×L×H) W min. W max. L min. L max. H min. | 50mm 320mm 100mm 420mm 15mm | 50mm 320mm 100mm 420mm 15mm |
| Positioning accuracy | 150mm | 150mm |
| Edge folding depth | ≤0.1mm R min. 20mm | ≤0.1mm R min. 20mm |
| Production speed | R max. 100mm | R max. 100mm |
| Heater power | 0-18 boxes/min | 0-35 boxes/min |
| Power | 13kw | 13kw |
| Machine dimension | 7300×2900×3300mm | 9300×2900×3300mm |
| Machine weight | 3000kg | 3500kg |

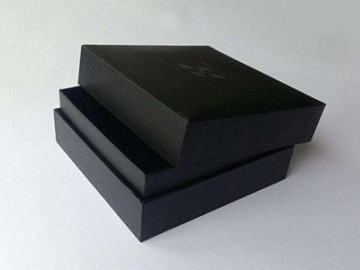

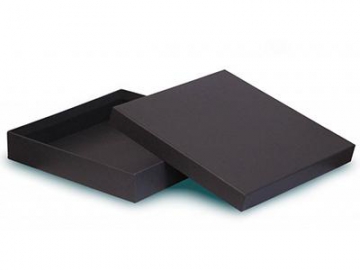

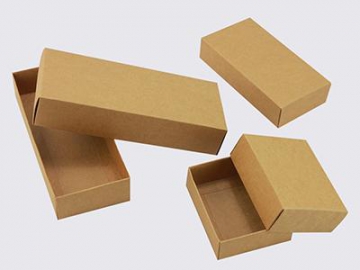

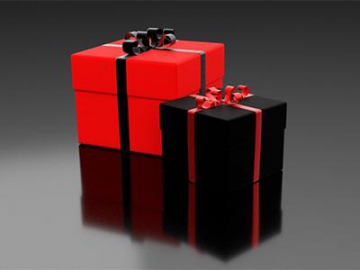

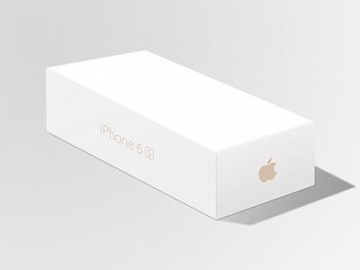

Samples
