Features

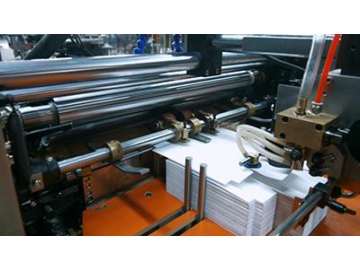

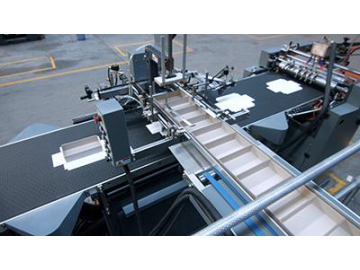

  • The hot melt glue can be circulated and mixed automatically with an auto-regulated viscosity.
  • The glue is evenly distributed with various thicknesses that can be finely tuned by mechanical mechanism to best suit the grade of cardboard.

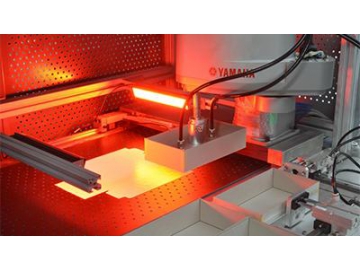

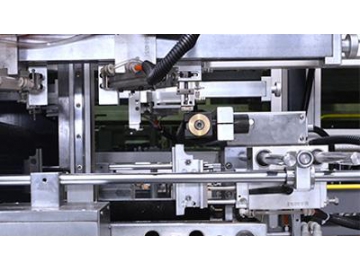

  • Photoelectric hydraulic pneumatic mechanism is adopted to rectify deviations automatically, thus to improve accuracy.
  • Guide rod is adopted in automatic box collecting and forming part to improve precision.
  • Combination of mechanical, electrical and pneumatic controls is adopted in the forming and folding mechanism to solve the dilemma of whole folding ear and middle folding ear.
  • The forming and folding mechanism is mechanically and pneumatically controlled to realize a full fold into 100 mm of the high end.
  • After boxing, the mechanical mechanism is changed to achieve twice bubble pressing.
Parameters
Parameters S 460Y S 240YS S 600Y
Sheet size (A×B) Min. 95×180mm Max. 610×850mm Min. 95×180mm Max. 610×850mm Min. 95×180mm Max. 610×850mm
Cardboard size (C×D) 600×800mm 600×800mm 600×800mm
Cardboard thickness T 0.8-3mm T 0.8-3mm T 0.8-3mm
Box size (W ×L×H)


W min. 60mm 60mm 60mm
W max. 320mm 320mm 400mm
L min. 100mm 100mm 100mm
L max. 420mm 420mm 600mm
H min. 15mm 15mm 15mm
H max. 125mm 125mm 150mm
Edge folding depth R min. 7mm R max. 90mm R min. 7mm R max. 90mm R min. 7mm R max. 35mm
Size of folding ear R min. 10mm R max. 125mm R min. 10mm R max. 125mm R min. 10mm R max. 125mm
Positioning accuracy ± 0.1m m ± 0.1m m ± 0.1m m
Production speed ≦ 18 boxes/min ≦ 30 boxes/min ≦ 35 boxes/min
Sheet stacking height 300mm 300mm 300mm
Cardboard stacking height 1000mm 1000mm 1000mm
Power 18kw /380V/3phases 18kw/380V/3phases 18kw /380V/3phases
Glue barrel capacity 60L 60L 60L
Air supply 12L/min. 0.6Mpa 12L/min. 0.6Mpa 12L/min. 0.6Mpa
Machine weight 6800kg 6800kg 6800kg
Machine dimensions L 6600×W 5800×H 3250mm L 6600×W 5800×H 3250mm L 6600×W 5800×H 3250mm
Process

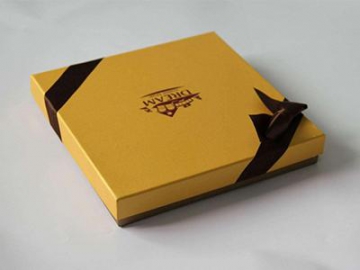

Samples
