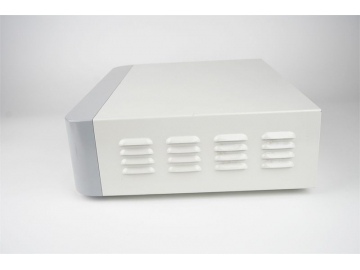

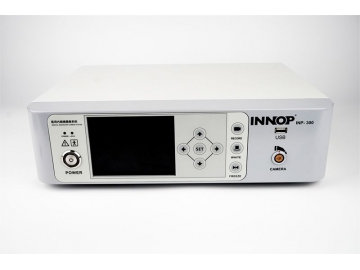

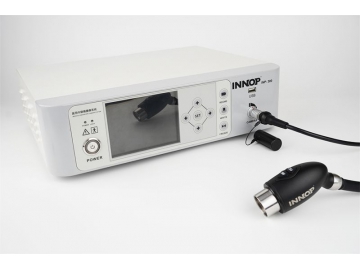

Full HD Endoscope Camera System with Video Recorder, INP-300
This Full HD endoscope camera, INP-300, receives a major recorder upgrade compared with INP-200. It can provide Full HD imaging with 60 frames per second and output videos in accordance with different standards, like DVI/VGA/SDI. This is why the endoscope camera system can be configured in different hospital departments.
Highlights
- Excellent Video Resolution
This endoscope camera is made with a bigger 1100TVL sensor that improves image quality by 30% and delivers vivid Full HD imaging. - USB Port

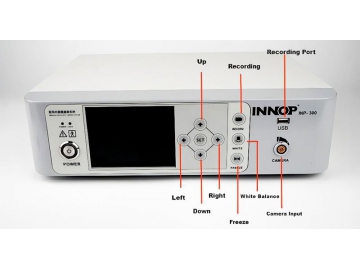

There is a USB port on the front side of the machine body, through which the video can be recorded so as to meet the needs of academic communication and staff training. - Reflection Elimination
This endoscope camera can achieve anti-fog and anti-reflection. - Optical Microangiography
This endoscopic surgery camera can color the capillaries it has captured.
Features
- This endoscope camera can send signals in accordance with DVI/CVBS/SDI/HDMI standards;
- This medical endoscope camera is equipped with a 1100TVL 1/2.8" SONY CMOS with 2 MP to shot Full HD videos with 50/60 frames per second while avoiding trail effect. It is also equipped with a 5-inch secondary monitor;
- This medical imaging machine supports the switch of NTSC menu to PAL menu. It also supports the OSD menu;
- The energy cost is relatively small and the camera body will generate little heat during operation;
- This endoscope camera can carry out different functions, like white balance, image freeze, anti-fog, anti-reflection and exposure compensation;
- This medical imaging camera is driven by an AC220V power supply and can work in places with the temperature ranging from -10°C to 50°C. It is also equipped with power surge protector with 500V clamping voltage and can avoid harms caused by static electricity, with the protection of contact electricity discharge reaching 8 kV and the air discharge reaching 15 kV;
- Able to be connected with different endoscope camera in different departments while avoid causing interference to high-frequency electric knife;
Specifications
- Input port: TFGG push-pull self-latching connector

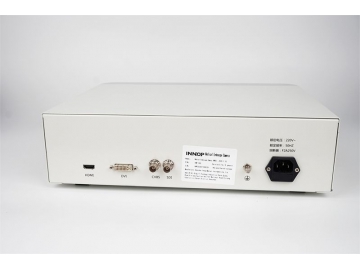

- Video output: SDI, CVBS, DVI, HDMI
- Synchronization mode: internal synchronization
- Input power: ≤100VA
- Safety fuse: F2A250V (filter), F3.15A250V (switch power supply)
- Power supply: 220V, 50Hz
- Operation temperature: 5~ 40℃
- Storage temperature: -20~ 55℃
- Humidity: 30%-80%, no condensation
- Atmospheric pressure: 50kPa~106kPa
- SNR (signal to noise ratio): greater than 50dB (AGC off)
- Minimum illumination: 1Lux (color), 0.5Lux (black/white)
- Resolution: 1920*1080P@60fps, maximum 1100 TV lines
- Frame rate: 50/60 fps
- OSD (on-screen display) menu: available
- White balance: button
- Screen freeze: button
- Rated power: up to 20W
- Standards: GB9706, YY0505, GB/T14710, CE, ROHS
- Brightness: 0~20 adjustable, default 7
- Sharpness: 0~10 adjustable, default 7
- Color saturation: 0~20 adjustable, default 10
- Gain: 0~10 adjustable, default 10
- Gamma: 0.45~0.75, default 0.55
- Format: PAL/NTSC, default PAL
- Language: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Russian, Spanish
- Dimensions: 380mm×300mm×115mm
- Weight: 4.6kg
