All-In-One Portable Endoscope Camera System, INP-Y300
As an endoscope camera manufacturer, INNOP relentlessly embrace innovation to make breakthroughs. Our efforts lead to this all-in-one portable endoscope camera system, which serves as a portable medical imaging camera and an external monitor, with a 18.5-inch 16:9 TFT screen, for endoscope camera.
Highlights

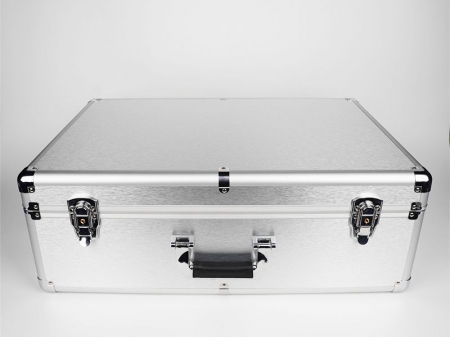

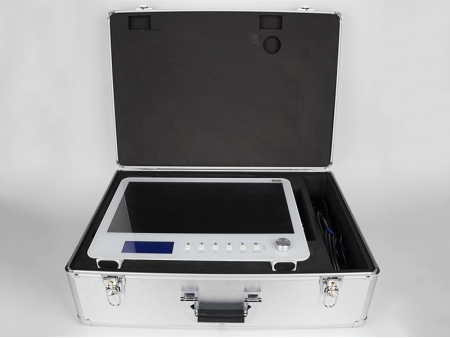

- Lightweight, Easy to Carry
A handle on the endoscope camera allows you to carry it to wherever you want. - Premium Quality, Affordable Price
This endoscope camera offers you an all-in-one endoscopy solution to help you reduce costs of additional accessories. - High Versatility
This medical imaging camera serves as a portable medical imaging equipment and an external monitor for endoscope camera. - Large Screen, Easy to Use
This endoscope camera is equipped with a 18.5-inch 16:9 TFT Full HD screen that you can easily change different parameters through the menu. - LED Cold Light Source
This endoscopic surgery camera is equipped with a LED cold light and can be directly connected to different endoscopic cameras, like hysteroscope, laparoscope, arthroscope, otoscope, laryngoscope, nasal scope, spine scope and cystoscope.
Features
- This medical endoscope camera can shot Full HD videos with 60 frames per second while avoiding trail effect;
- Full HD videos with 60 frames can be stored in USB devices;
- This IP68 waterproof endoscope camera can carry out different functions, like white balance, image freeze, anti-fog, anti-reflection and exposure compensation;
- The cold light source of this endoscope camera has a 5700K light temperature and 80W power;
- This medical imaging camera is driven by an AC220V power supply and can work in places with the temperature ranging from -10°C to 50°C. It can avoid harms caused by static electricity, with the protection of contact electricity discharge reaching 6 kV and the air discharge reaching 8 kV;
- Able to be connected with different endoscope camera in different hospital departments while avoid causing interference to high-frequency electric knife;
Specifications

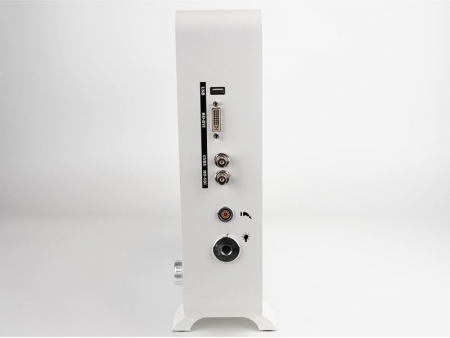

- Input port: TFGG push-pull self-latching connector
- Video output: SDI, CVBS, DVI
- Synchronization mode: internal synchronization
- Input power: ≤100VA
- Safety fuse: F2A250V (filter), F3.15A250V (switch power supply)
- Power supply: 220V, 50Hz
- Operation temperature: 5~ 40℃
- Storage temperature: -20~ 55℃
- Humidity: 30%-80%, no condensation
- Atmospheric pressure: 50kPa~106kPa
- SNR (signal to noise ratio): greater than 50dB (AGC off)
- Resolution: 1920*1080P, maximum 1100 TV lines
- Frame rate: 60 fps
- Data storage: USB
- Handle button functions: white balancing, screen freezing
- Display: 18.5"16:9 Full HD TFT monitor
- Cold light source: color temperature 5700K, power 80W
- Standards: GB9706, YY0505, GB/T14710, CE, ROHS
- Brightness: 0~20 adjustable, default 7
- Sharpness: 0~10 adjustable, default 7
- Color saturation: 0~20 adjustable, default 10
- Gain: 0~10 adjustable, default 10
- Gamma: 0.45~0.75, default 0.55
- Format: PAL/NTSC, default PAL
- Language: English, Japanese, Korean, Russian, Spanish, Simplified Chinese, Traditional Chinese (other languages can be customized)
- Dimensions (L×W×H): 485mm×90mm×365mm
- Weight: 8kg
