Architectural Lighting Cast Aluminum Fixture LED Floodlight Code AM723SCT-SWT-CAT LED Light

Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Architectural Lighting Cast Aluminum Fixture LED Floodlight  Code AM723SCT-SWT-CAT LED Light
Characteristics
  • 0-100% 16Bit dimmer, DIM4 dimmer technology.
  • 1800-6500k color temperature optional, intelligent dimming.
  • Flexible adjustment of lamp head.
  • Lightning protection design and high performance stability.
  • CAT version can achieve gold color, creating a golden and brilliant effect precision dial.
Product Parameters
Model AM723SCT AM723SWT AM723CAT
Input Voltage AC100~240V AC100~240V AC100~240V
Max. Power 230W 230W 260W
Power Factor >0.9 >0.9 >0.9
Lumen 14659lm 11080lm 13860lm
Peak Beam Intensity 596073cd(6°) 288407cd(6°) 496025cd(6°)
LED Quantity 90pcs cool white 90pcs warm white 90pcs Amber + cool white
Optical Angle 6°(12°, 25°, 45°,40*12°) 6°(12°, 25°, 45°,40*12°) 6°(12°, 25°, 45°,40*12°)
DMX Dimming 0-100% 0-100% 0-100%
RTCP DMX512, RDM DMX512, RDM DMX512, RDM
Controllable Sections 1 1 1
Power Connection 3m cable input 3m cable input 3m cable input
Data Connection 3m cable input / output 3m cable input / output 3m cable input / output
IP Rating IP66 IP66 IP66
Operation Temperature -40°C~45°C (optional) -40°C~45°C (optional) -40°C~45°C (optional)
-40°C~45°C (startup) -40°C~45°C (startup) -40°C~45°C (startup)
Housing Material Die-casting aluminum Die-casting aluminum Die-casting aluminum
Housing Color White(optional: grey, black) White(optional: grey, black) White(optional: grey, black)
Dimensions 706x252x310mm 706x252x310mm 706x252x310mm
Weight 25KG 25KG 25KG

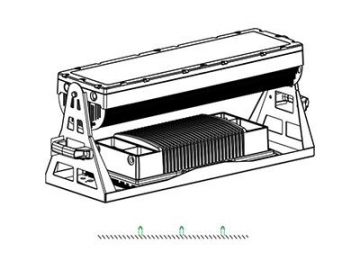

Dimensions
Illumination Contours

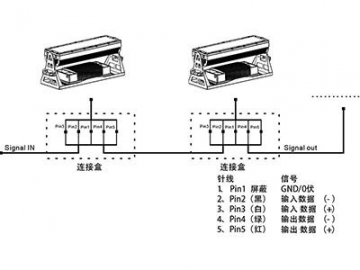

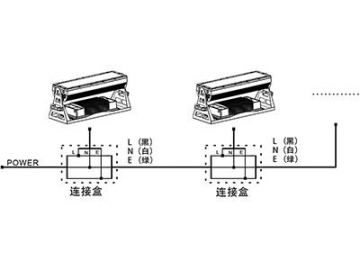

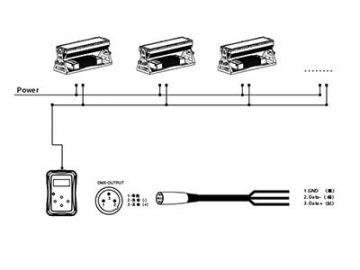

Installations
Optional Accessories

Anti-glare cover
