Linear LED High Bay / Low Bay Light

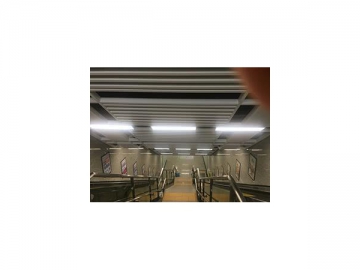

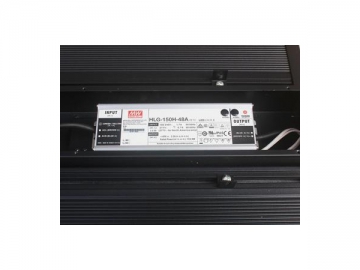

The lighting system of the linear LED high bay/ low bay light has powerful lighting functions and is suitable for various commercial and industrial uses. LED linear lighting system can be fixed on many kinds of surfaces, be hanged on the ceiling or adopt embedded installation. The beam angle of the linear LED light is 120° so it has a wide range of illumination. The designed service life of the linear LED light is more than 50,000 hours, which is realized by the aluminum heat sink. The heat sink transfers the thermal energy of the LED driver and chip to the ambient air. The linear LED lights are widely used in hospital lighting, supermarket lighting, school lighting, train station lighting system, subway lighting system, theater lighting, stadium lighting and so on
For this kind of light, we have produced following models. You can choose the products according to your actual needs.
| Model No. | Power | Lumen | Dimensions(mm) | Volume Weight | CTN Size | |
| MF-LH-100W | 100W | 16000lm | 600× 420× 76 | 10.5KG | 66×15×51CM | |
| MF-LH-150W | 150W | 24000lm | 600× 420× 76 | 10.5KG | 66×15×51CM | |
| MF-LH-200W | 200W | 32000lm | 900× 420× 76 | 14.5KG | 66×15×51CM | |
| MF-LH-240W | 240W | 38400lm | 1200× 420× 76 | 19.5KG | 127×15×51CM | |
| MF-LH-320W | 320W | 51200lm | 1200× 420× 76 | 19.5KG | 127×15×51CM | |
| MF-LH-400W | 400W | 64000lm | 1200× 420× 76 | 19.5KG | 127×15×51CM |
- 120° beam angle.
- The linear LED light adopts AL 1060/1070 4.00mm pure aluminum plate as aluminum substrate to transfer the thermal energy of the LED chip to the heat sink effectively.
- The designed service life of the linear LED light is 50,000 hours and it can be used for 9 years. (15hours/day)

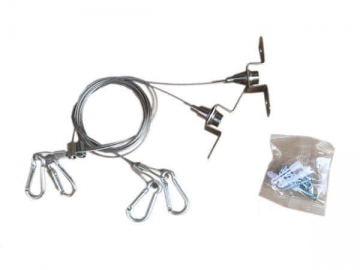

- The installation method is hoisting which can be operated easily and conveniently.
The linear LED light can be transported by air, international express and sea directly.
