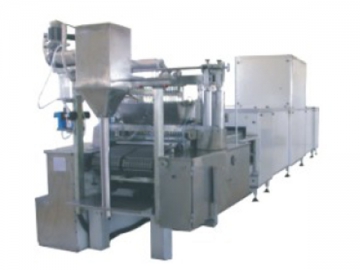

Toffee Candy Production Line
The toffee candy production line adopts international famous brand of PLC which has more stable performance. The pouring speed, holding temperature as well as vacuum cooking temperature and time can be automatically controlled by programming. The frequency control regulates the flow of the sugar liquor accurately, so the obtained massecuite has stable quality. The quantitative filling and mixing of essences, pigments and acid liquor can be finished on line by the dynamic mixer and accurate demoulding can be ensured by the conveying chain belt, cooling system and the dual demoulding mechanism. The process flow and working condition of each part are shown on the 10.7 in touch screen. Various parameters, such as temperature, pouring speed, etc., can also be set on this screen.

Different shapes of candies can be made by the adoption of different moulds. Chocolate candies can be produced by adding a chocolate quantitative filling system. By replacing part devices and moulds, this production line can also make spherical or flat stereo lollipops.

Specifications

Model	QH150	QH300	QH450	QH600
Standard Production Capacity	150kg/h	300kg/h	450kg/h	600kg/h
Max. Weight of the Candy	6g	6g	6g	6g
Pouring Speed	55-65 time/min	55-65 time/min	55-65 time/min	55-65 time/min
Steam	250kg/h，0.5-0.8MPa	300kg/h，0.5-0.8MPa	400kg/h，0.5-0.8MPa	500kg/h，0.5-0.8MPa
Compressed Air	0.2m³/min, 0.4-0.6MPa	0.2m³/min, 0.4-0.6MPa	0.25m³/min, 0.4-0.6MPa	0.25m³/min, 0.4-0.6MPa
Requirements of the Working Environment	Temperature 20-25℃, humidity 55%	Temperature 20-25℃, humidity 55%	Temperature 20-25℃, humidity 55%	Temperature 20-25℃, humidity 55%
Total Power	32KW/380V	39KW/380V	48KW/380V	75KW/380V
Length of the Entire Line	17m	17m	18m	18m
Total Weight	3500kg	4000kg	4500kg	5000kg

Capable of producing toffees, toffees with fillings, etc., the toffee candy production line is made up of sugar dissolving pot, storage bucket, cooking pot, pouring unit, cooling tunnel and other devices. We provide products with four different standard production capacities, which are 150kg/h, 300kg/h, 450kg/h and 600kg/h. Customers can choose according to their own needs. These four types of products can produce toffee candy with the weight less than 6g. The pouring speed is 55 to 65 times per minute.

Images of the products produced by our equipment are as follows.
