26711(T) JIC Straight Female 74° Cone Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC straight female 74° cone fittings
- Carbon steel JIC straight female 74° cone fittings

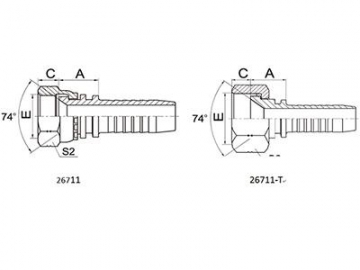

| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S1 | ||
| 26711-04-04 | 7/16''×20 | 6 | 04 | 15 | 9 | 15 | |
| 26711-05-05 | 1/2''×20 | 8 | 05 | 15.5 | 9.5 | 17 | |
| 26711-06-05 | 9/16''×18 | 8 | 05 | 15.5 | 10.5 | 19 | |
| 26711-06-06 | 9/16''×18 | 10 | 06 | 15.5 | 10.5 | 19 | |
| 26711-08-06 | 3/4''×16 | 10 | 06 | 17.5 | 11 | 24 | |
| 26711-08-08 | 3/4''×16 | 12 | 08 | 18 | 11 | 24 | |
| 26711-10-10 | 7/8''×14 | 16 | 10 | 20 | 13 | 27 | |
| 26711-12-12 | 1.1/16''×12 | 20 | 12 | 21.5 | 15 | 32 | |
| 26711-14-12 | 1.3/16''×12 | 20 | 12 | 21.5 | 15 | 36 | |
| 26711-16-16 | 1.5/16''×12 | 25 | 16 | 23 | 16 | 41 | |
| 26711-20-20W | 1.5/8×12 | 32 | 20 | 26 | 17 | 50 | |
| 26711-24-24W | 1.7/8''×12 | 40 | 24 | 26.5 | 20 | 55 | |
| 26711-32-24T | 2.1/2''×12 | 40 | 24 | 27 | 23.5 | 75 | |
| 26711-32-32T | 2.1/2''×12 | 50 | 32 | 27 | 23.5 | 75 | |
